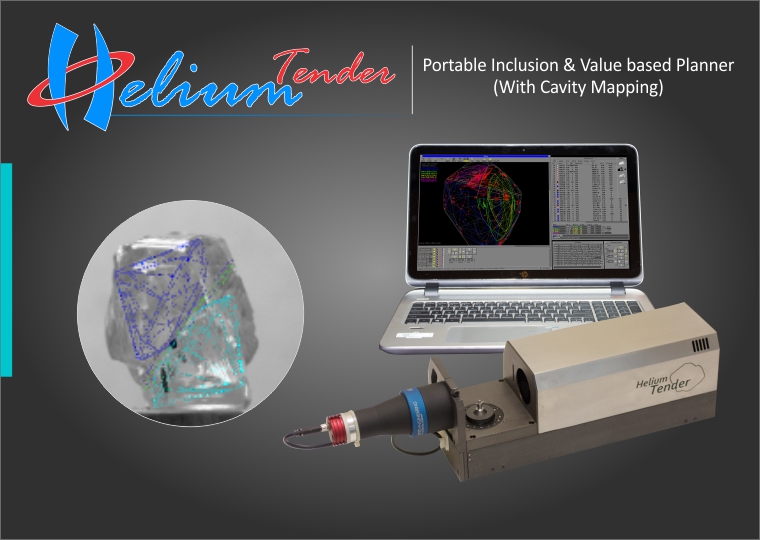

Allocation & Planning| Helium Tender

Salient Features

Any inclusion including Gletz / piques / bubbles (VS to I) can be considered.
The machine intelligence will help you in deciding if inclusion removal or re-orientation will maximize your profit. At the time of tender, this is even more important
If the suggested plan includes the inclusions, machine software will show you where those inclusions will be reflected in the polished stone. The machine will grade the finished stone based on size of inclusions left inside the polished stone, its orientation and its reflection / refraction inside the polished stone. Model building accuracy is better than 0.020 mm makes this possible.
Can be transferred to M-Box for VVS1 to IF Inclusion.
Free Oxygen Viewer will make it possible for your overseas office to participate in critical decision making. They will be able to view the provisional / final plan of the virtual stone, and give their consent before further process.
LAN configurable and multi user environment software support reduces overall cost. Inclusion placement and allocation can be done in off machine mode to reduce load on the scanner and increase its utility factor (reduce overall investment).
Can handle size up to 32mm or 61mm.
The software is specifically designed to accurately suggest the most profitable planning options in value recovery terms. In the process the Rapaport / user specific price structure can be used.
Offline working mode - you can scan the stone overseas and plan your stone locally - value based and inclusion based.
Easy to install. Just Connect to USB Port of your laptop and Go.
Easy to carry with portable carry bag.
No Re - Alignment required.

Specification

Helium Tender Scanner
Camera Model: MC023MG-SY CMOS 1/1.2" Resolution: 1936 x 1216 (ratio 1.6:1)
2.3 Megapixels Monochrome CMOS camera with Sony IMX174
MODELS	HT⁺32	HT⁺61
Field of view :	20.3 X 32.3 mm	38.6 X 61.4 mm
Rough Size :	2.5 Ct to 130 Ct	15 Ct to 900 Ct
3D-model accuracy :	17 µm	32 µm
Oxygen Inclusion Terminal Software :	At Extra	Included
Lens :	TC23024 - 0.35x	TC23048 - 0.184x
Diamond Type :	Any Cut
Diamond Holding :	Glue assisted
3D Inclusion Mapping :	Very advanced - working on images of windowed stone
Concavity Mapping :	Yes
Optimization :	Auto/Manual Sawing, Single/Multiple
Print Reports :	Available (very detailed + user definable)
Electronic Reports :	Free reader software (any numbers). Important for Manufacuturing support
Warranty :	12 months
Lens :	0.35x	0.184x
Camera :	CMOS 1/1.2" - 1936 x 1216 pixel
Computer requirements :	View Specification here
Operating Systems :	Windows 10 Professional - 64bit
Weight :	8 Kgs	9 Kgs
Dimensions :	37 x 12 x 13 cm	47.5 x 13 x 13.5 cm
Power consumption :	110/220V 50/60Hz 40W

MODELS	HT⁺32	HT⁺61
Price in Euro €	€ 29,100.00	€ 34,900.00
Helium Tender support to CARBON Version Only
All The Prices Are Ex-Works, Surat, Excluding Freight, Insurance, Packing & Forwarding and Taxes

Introduction

Salient Features

Helium Tender Operating Video

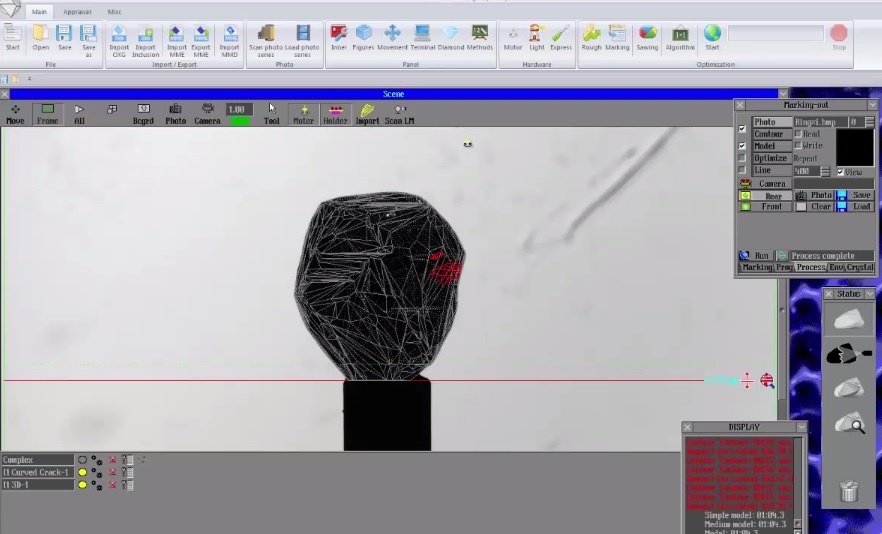

Helium Tender Software Screen
