Introduction

The Helium Polish Oxygen diamond scanner is known to be the most precise and popular polish diamond scanner with a very intuitive software, used invariably by diamond cutting factories, laboratories and dealers alike.

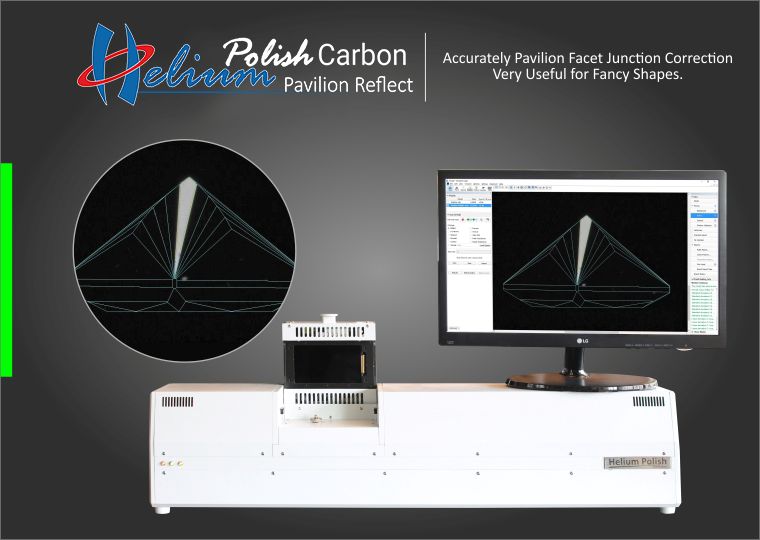

There comes the GURU, helping improve scan from the Helium Polish Shadow scanner. When a diamond scanned on HP shadow scanner is scanned on HPO – Pavilion Reflect scanner, the information from the previous scan will be used to light the individual facets on the Pavilion, including Main facets. Based on the shine from the facet, the model will be corrected to result in very precise model building and accurate facet size, slope and azimuth angle measurement. Also the junctions which are not measured correctly on Helium Polish Oxygen Scanner, specially for fancy shapes also get corrected automatically resulting in a very precise model building.

This accurate 3D model can be used to calculate facet size and facet junction size with ultimate precision, allowing one to grade the polish diamond’s cut grade, symmetry grade as well as minor symmetry, completely objectively.

Salient Features

Software Specification
MODELS HPO-PR 17 Digital HPO-PR 23 Pro Digital
Field of view : 13.2mm X 17.4mm 17.7mm X 23.6mm
Polish Size : Minimum 4.5 mm
Maximum 17.4 mm
Minimum 5 mm
Maximum 23.6 mm
Slope angle limit : 20° to 70° 20° to 70°
Diamond types : Any Cuts Any Cuts
3D-model accuracy : 13 microns 15 microns
Standard ReCut option : Available Available
Asymmetric Smart Recut Option
based on GIA Facetware + MyGIA :
Optional Optional
GIA Facetware based
Grade estimation:
Optional (Cut as well as Symmetry) Optional (Cut as well as Symmetry)
Soft HTML5 Report Very advanced interactive 3D report (i3D report) Very advanced interactive 3D report (i3D report)
Print reports : Available (Very detailed + user defined) Available (Very detailed + user defined)
Custom report : Optional Optional
Mfg. Warranty : 24 months 24 months
Service Warranty : 12 months 12 months
Projected RBC range : 0.35 to 18 Cts 0.50 to 45 Cts
Projected Marquise range : 0.60 to 4.5 Cts 0.90 to 11 Cts

Hardware Specification
HARDWARE SPECIFICATION HPO-PR 17 Digital HPO-PR 23 Pro Digital
Lens : 0.5x 0.5x
CCD camera : 2/3" - 1360X1024 1" - 1600 X 1200
Computer requirements : View View
Operating Systems : Windows 7 - 64bit / Windows 10 - 64bit Windows 7 - 64bit / Windows 10 - 64bit
Weight : 25 Kg 25 Kg
Dimensions L x W x H : 95 X 19 X 24 (cm) 95 X 19 X 24 (cm)
Power consumption : 220V 50Hz 300W 220V 50Hz 300W

Price (Ex-works)
PAVILION REFLECT
On or Before After
31st August 2018 1st September 2018
HPO-PR 17 Digital € 33,225.00 € 44,300.00
HPO-PR 23 Pro Digital € 44,910.00 € 59,880.00
Delivery Antwerp Brussels Johannesburg Melbourne New York Tokyo
Additional CIF Rates € € 1,400.00 € 1,190.00 € 1,190.00 € 1,190.00 € 1,550.00 € 1,190.00
Add Freight, Insurance & Cartage for following destination to arrive at CIF Delivery Rates.
×
