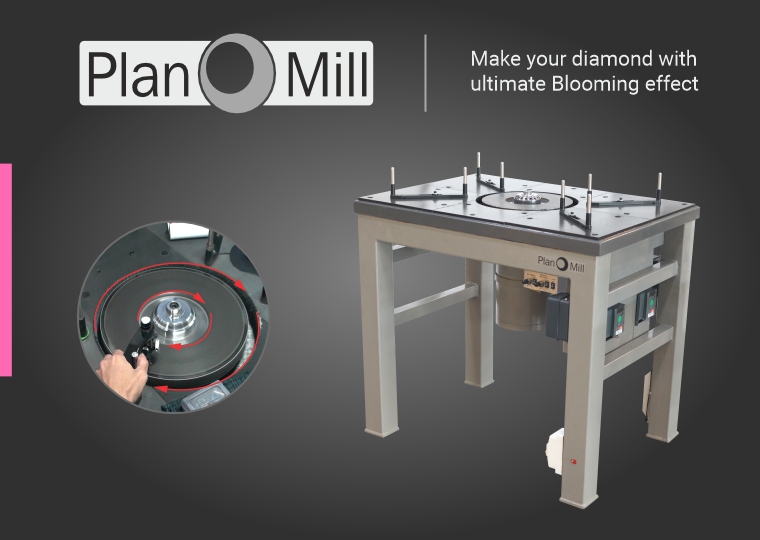

PlanO'Mill

Home Polishing PlanO'Mill

Overview

Application

  1. To polish the diamond on diamond polishing scaife rotating between 1000 to 3600rpm, while holding the diamond in hand held tools and fixtures.

Salient Features

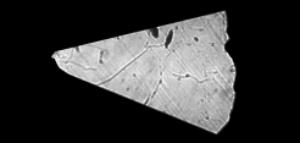

From Ragular Polishing Bench

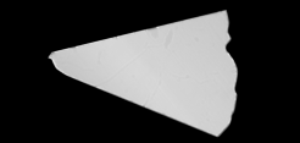

From Plan'O Mill Bench

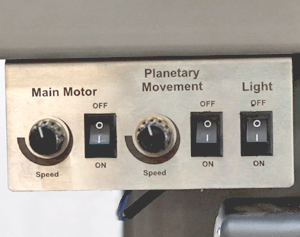

Frequency Controller(RPM Controller)

PlanO'mill Operating Video

Specification
Weight 450 kg (May vary based on model)
Dimension 1025 x 725 x 930(1900)mm (Customized construction possible)
Power Supply 415 V AC, 50 Hz, 3 Phase (Please contact Lexus for details)
Maximum Power Torque 5 Nm 1.5 kw (2 HP)
No Load Current (Spindle drive) 0.4 to 0.6 Amp (415 V)
Starting Current (Spindle drive) 10 Amp (415 V) - for 10seconds-On full load
Normal On Load Current 1.0 to 1.2 Amp (415 V)
Total Power Consumption In Unit 0.70kw/hr
Spigot Size (Scaife Bore) 50mm - EXPANDING NOSE
Planetary Drive Stroke 14mm
Alignment Accuracy 0.005mm
Planetary Drive Speed 9 Stroke/min
Spindle Drive RPM 1000 to 3600 Variable
Brake Electronic brake
