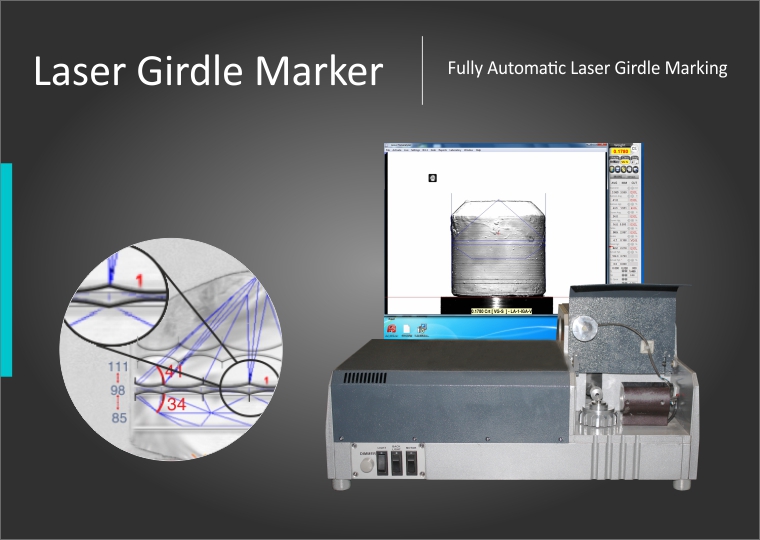

Allocation & Planning| Laser Girdle Marker

Lexus introduces Laser marking system, which can be fitted in the existing Lexus Planners, Analyzer and Centering machines. The use of simple XYZ control mechanism and accurate alignment of the laser systems allows Laser marking even without any 3D model construction. For example for girdle marking or table marking where the table tilting is not required. Just double click on the location and GO.

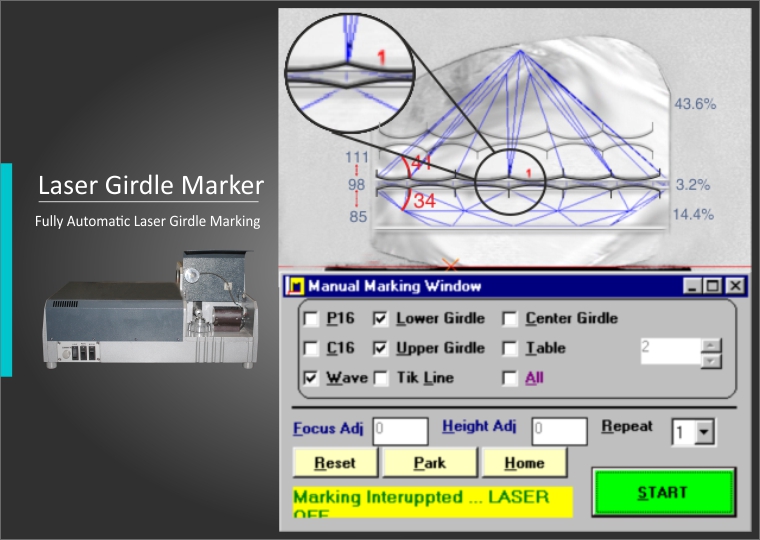

Of course for tilted and complicated markings, 3D model construction is must. As video is overlaid on the Screen with the actual layer marking, it is easy to identify any mistakes or misalignment of Laser marking.
The System is very small and can be easily integrated into your existing Lexus Planners and Analysers.
Perhaps with the help of Local area Network and data transfer technology, one laser marker can help two or more planning machines. But of course the marking accuracy will depend on the Mechanical accuracy of replacement of the Holder.


Weight	19 kg. (Net) [ Including Laser power supply ]
Dimension	750L x 280W x 210H mm
Power Supply	220 VAC , 50 HZ , 1 Phase
Load	500 VA
Computer System	Standard PC Platform with 17” Monitor.


Module	Price in €
Laser Girdle Marker	€ 19,500.00
ALL THE PRICES ARE EX-WORKS, SURAT, EXCLUDING FREIGHT, INSURANCE, PACKING & FORWARDING AND TAXES.
