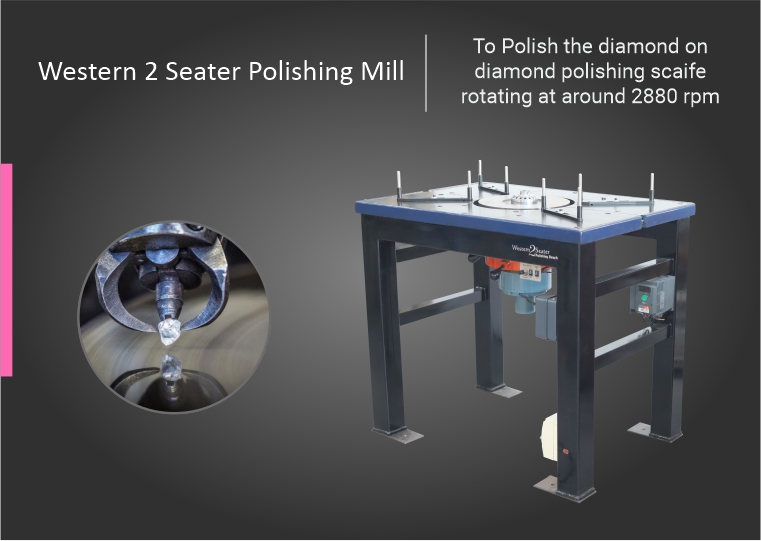

Polishing | Western 2 Seater Mill

Salient Features

Use of super precision P2/P4 quality matched pair angular contact bearings guarantee dynamic axial run out within 0.001 mm.
Large 60 mm bore duplex matched pair, mounted in tandum at the nose - end ensures unmatched Life performance for years to come.
Duplex matched pair mounted in tandum at the tail - end supports the spindle under 500 N preload forces. This ensures very high stiffness to take care of small unbalance force coming from the unbalanced Scaife.
Expanding nose always ensures concentric mounting of balanced Scaife eliminating requirement of balancing the Scaife on the mill after mounting.
Integral scaife drive allows use of open top mills, enhancing appearance of the factory and allowing easier operation.
The complete drive assembly is dynamically balanced on high precision balancing machine developed specifically for this captive purpose.
The super precision bearings are greased for life, and require no attention during their many years of service.
Ultimate rotational accuracy, due to quality manufacturing set up.
Ultimate rotational accuracy, due to quality manufacturing set up.
Single piece stabilized spindle, resulting in maximum stability. (Scaife will be actually fixed on the Spindle, and not on a screwed - on flange).
Ergonomically designed unit ensures fatigue free working.
Available in 2 station and 4 station version.( Any client specific design can be made available ).
Complete with Dust collection ducting system.
Cast iron top and filled frame ensures good damping.
Machined top with anti-roll edge to avoid rolling down of pots placed on the table (Available in STD Model).

Specification


Weight	350 kg (May vary based on model)
Dimension	1025 x 725 x 930(1900)mm (Customized construction possible)
Power Supply	415 V AC, 50 Hz, 3 Phase(Please contact Lexus for details)
Maximum Torque	Torque 5 Nm 1.5 kw (2 HP)
No Load Current (Spindle drive)	0.4 to 0.6 Amp (415 V)
Starting Current	10 Amp (415 V) - for 10seconds -on full load
Normal On Load Current	0.7 to 1.0 Amp (415 V)
Total Power Consumption In Unit	0.35 kw/hr.-In Unit
Spigot Size (Scaife Bore)	50mm - Expanding nose
