Allocation & Planning| Helium Rough

Salient Features

Any inclusion including Gletz / piques / bubbles (VS to I) can be considered.
Shortest payback time. Many times, as short as 4 to 5 days. Increases profit exponentially with a little increase in efforts.
Automatic Sawing plan generated, to maximize your profit.
Most advanced and accurate cavity mapping technique, thanks to its dual head scanning technology.
The machine intelligence will help you to decide if inclusion removal or re-orientation of inclusion will maximize your profit.
If the suggested plan includes the inclusion, the machine software will show you where that inclusion will be reflected in the polished piece. The Software will grade the finished stone based on size of inclusion left inside the polish stone, its orientation and its reflection / refraction inside the polish stone. Model building accuracy of better than 0.005 mm makes this possible.
More than 3000 data fields are exported, including images for every scan.
Intelligent Laser marking software leaves off the area unmarked where it matters the most.
Very fast laser marking facility. Choose and mark all option of marking in one key stroke.
Warranty of 36 months/5000 hrs on laser source
Free Oxygen Viewer will make it possible for your overseas office to participate in critical decision making. They will be able to view the provisional / final plan on the virtual stone, and give their consent before further process.
Free Oxygen Viewer is an inevitable tool for the manufacturing department to have a look at virtual report of the plan. This will reduce a great amount of paper work, and makes your factory, a truly IT oriented organization.
Eight options of cavity mapping: Small, Medium, Big, etc. to suite your need.
Eight and more options of optimization program to choose from.
LAN configurable and multi user environment software support reduces overall cost. Inclusion placement and allocation can be done in off machine mode to reduce load on the scanner and increase its utility factor (reduce overall investment).
The software is specifically designed to accurately suggest the most profitable planning options in value recovery terms. In the process the Rapaport / user specific price structure can be used.

Specification

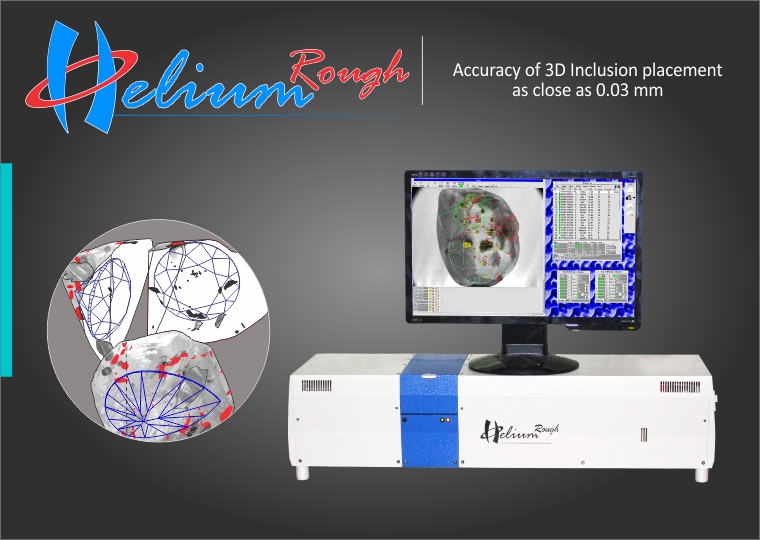

Helium Rough Scanner
Camera Model: MC023MG-SY CMOS 1/1.2" Resolution: 1936 x 1216 (ratio 1.6:1)
2.3 Megapixels Monochrome CMOS camera with Sony IMX174
MODELS	HR⁺5.5	HR⁺11	HR⁺22.5	HR⁺45
Field of view :	3.56 x 5.67 mm	7.12 x 11.34 mm	14.2 x 22.6 mm	28.4 x 45.2 mm
Rough Size :	0.05 Ct to 0.60 Ct	0.10 Ct to 4.5 Ct	0.30 Ct to 60 Ct	2.5 Ct to 440 Ct
3D-model accuracy :	2.9 µm	5.9 µm	11.7 µm	23.4 µm
Diamond Type :	Any Cut
Diamond Holding :	Vacuum / Glue assisted
3D Inclusion Mapping :	Very advanced - working on images of windowed stone
Concavity Mapping :	Unparalleled acccuracy due to dual line sournce to cover cavities from multiple direction
Optimization :	Auto/Manual Sawing, Single/Multiple
Laser Marking :	With advanced focusing system. Select all requirements in one go.
Print Reports :	Available (very detailed + user difinable)
Electronic Reports :	Free reader software (any numbers). Important for Manufacuturing support
Warranty :	24 Months Part warranty - 12 months free service warranty
Lens :	2x	1x	0.5x	0.25x
Camera :	CMOS 1/1.2" - 1936 x 1216 pixel
Computer requirements :	View Specification here
Operating Systems :	Windows 10 Professional - 64bit
Weight :	18 Kgs	24 Kgs	30 Kgs	30 Kgs
Dimensions :	70 x 23 x 23 cm	75 x 23 x 23 cm	92 x 23 x 23 cm	92 x 23 x 23 cm
Power consumption :	220V 50Hz 500W

MODELS	HR⁺5.5	HR⁺11	HR⁺22.5	HR⁺45
Price in Euro €	€ 28,050.00	€ 34,100.00	€ 63,000.00	€ 91,700.00
All The Prices Are Ex-Works, Surat, Excluding Freight, Insurance, Packing & Forwarding and Taxes

Delivery	Antwerp	Brussels	Johannesburg	Melbourne	New York	Tokyo
Additional CIF Rates €	€ 1,400.00	€ 1,190.00	€ 1,190.00	€ 1,190.00	€ 1,550.00	€ 1,190.00
Add Freight, Insurance & Cartage for following destination to arrive at CIF Delivery Rates.

Clients

CLIENT NAME	COUNTRY	CLIENT NAME	COUNTRY
AB INDUSTRIAL DIAMONDS DMCC	DUBAI	KASHI EXPORTS	INDIA
AFRIASIA DMCC	DUBAI	KGK STAR ROUGH PTY. LTD.	SOUTH AFRICA
AKARSH EXPORTS	INDIA	KHAIR LIMITED	DUBAI
ALOK IMPEX PVT. LTD. (GROUP OF KGK)	INDIA	KIRAN GEMS PVT. LTD.	INDIA
ANKIT GEMS PVT. LTD.	INDIA	KIRTILAL M. SHAH (K.M. SHAH)	INDIA
ANTWERP INVESTMENT DIAMONDS BVBA	BELGIUM	LANKA DIAMOND POLISHING LIMITED (GROUP OF ROSY BLUE)	SRI LANKA
ARORA DIAMOND	DUBAI	LAURELTON DIAMOND INC.	BELGIUM
ASCOT DIAMONDS PVT. LTD.	SOUTH AFRICA	LAXMI DIAMOND PVT. LTD.	INDIA
ATMANAND GEMS	INDIA	LEMON TECHNOMIST PVT. LTD.	INDIA
B. MAHESH	INDIA	LEO SCHACHTER BOTSWANA (PTY) LTD.	BOTSWANA
BAOBAB TECHNOLOGIES BVBA	BELGIUM	M. SURESH COMPANY PVT. LTD.	INDIA
BHAJAN JEWELS	INDIA	MATRIX DIAMOND TECHNOLOGY NV	BELGIUM
BHANSALI & CO	INDIA	MEGHNA DIAMOND	INDIA
BHARGOVI	INDIA	MOHIT DIAMONDS PVT. LTD.	INDIA
BHAVANI GEMS PVT. LTD.	INDIA	MONARCH GEMS	INDIA
BLUE STAR DIAMONDS PVT. LTD.	INDIA	MOUAWAD BANGKOK RARE JEWELS MANUFACTURERS CO. LTD.	THAILAND
BRAHMA DIAMOND	INDIA	MUNJANI BROTHERS	INDIA
BROWN DIAMONDS MFG. PVT. LTD (GROUP OF SHEETAL MANUFACTURING CO.)	INDIA	N. SATISH EXPORT PVT. LTD.	INDIA
C. DINESH & CO. PVT. LTD.	INDIA	NACRE DIAM	BELGIUM
C. MAHENDRA EXPORTS LTD.	INDIA	NAMCOT DIAMONDS (PTY) LTD	NAMIBIA
C12 DIAMOND	DUBAI	NAROLA GEMS (SHRIJI DIAMOND)	INDIA
CHOW SANG SANG DIAMONDS (GUANGDONG) CO. LTD.	CHINA	NEMESIS DIAMONDS DMCC	DUBAI
CHOW TAI FOOK JEWELLERY CO. LTD.	HONG KONG	NEMESIS INTERNATIONAL DMCC.	BELGIUM
CONGHUA EAST UNICORN DIAMONDS LIMITED (EURO STAR)	CHINA	ORIANA DIAMOND	SOUTH AFRICA
CTF (BOTSWANA) DIAMOND CUTTING WORKS (PTY) LTD.	BOTSWANA	PANSURIYA IMPEX	INDIA
D. NAVINCHANDRA GEMS PVT. LTD.	INDIA	PLUCZENIK BOTSWANA (PTY) LTD.	BOTSWANA
D.A. JHAVERI (ALPA DIAMOND)	INDIA	PLUCZENIK DIAMOND COMPANY NV	BELGIUM
DDK LLC (GROUP OF KGK)	YAKUTIYA	PRAMUKH GEMS	INDIA
DDK LLC.	MOSCOW	PRANAMI GEMS	INDIA
DDMFG	BELGIUM	PRAVINCHANDRA & CO.	INDIA
DE BEERS GLOBAL SIGHTHOLDER SALES	BOTSWANA	PRIME DIAMONDS PVT. LTD.	INDIA
DHARMANANDAN DIAMOND PVT. LTD.	INDIA	PRISTINE DIAMONDS NV	BELGIUM
DIACENTRE	INDIA	R.T. STAR SOLITAIRES	INDIA
DIAMCAD BOTSWANA (PTY) LTD	BOTSWANA	RADHIKA DIAMONDS MFG. PVT. LTD (GROUP OF SHEETAL MANUFACTURING CO.)	INDIA
DIAMCAD NV	BELGIUM	RIJAY DIAMOND MFG. CO. PVT. LTD.	INDIA
DIAMOND DESIGN	RUSSIA	ROSY BLUE (INDIA) PVT. LTD.	INDIA
DIAMSCAN	BELGIUM	ROSY BLUE DIAMOND CO. LTD.	THAILAND
DI-AN-ARE EXPORTS	INDIA	ROSY BLUE DIAMOND JOHHANESBURG (PTY) LTD.	SOUTH AFRICA
DIAROUGH NV	BELGIUM	ROSY BLUE N.V	BELGIUM
DIAROUGH SOUTH AFRICA PTY. LTD.	SOUTH AFRICA	S. D. DIAMOND (GROUP OF KGK)	RUSSIA
DIMEXON DIAMONDS LIMITED	INDIA	S. VINODKUMAR DIAMONDS PVT. LTD.	INDIA
DIRGH DIAMOND PVT. LTD.	INDIA	SAFDICO BOTSWANA (PTY) LTD.	BOTSWANA
EUROSTAR BOTSWANA (PTY) LTD.	BOTSWANA	SAFDICO RSA (PTY) LTD.	SOUTH AFRICA
FACET POLISHING WORKS PVT. LTD.	INDIA	SAHIL GEMS (SPARSH)	INDIA
GEM DIAMONDS MARKETING SERVICES BVBA	BELGIUM	SANGHAVI EXPORTS INTERNATIONAL PVT. LTD.	INDIA
GEMOLOGICAL INSTITUTE OF AMERICA	USA	SANGHVI & SONS	INDIA
GODHANI GEMS PVT. LTD.	INDIA	SAVANI BROTHERS	INDIA
GODHANI IMPEX	INDIA	SHAIRU GEMS DIAMONDS PVT. LTD.	INDIA
H. DIPAK & CO.	INDIA	SHITAL DIAM	INDIA
H. RIDDHESH & CO.	INDIA	SHREE BALKRISHNA EXPORTS	INDIA
HALL OF DIAMONDS	SOUTH AFRICA	SHREE KRISHNA EXPORTS	INDIA
HARI KRISHNA EXPORTS PVT. LTD.	INDIA	SHREE RAM KRISHNA EXPORTS PVT. LTD.	INDIA
HARI KRISHNA GEMS	INDIA	SIMPLY SPARKLING BVBA	BELGIUM
HINI GEMS (NEELAM EXPORTS)	INDIA	SMOLENSK-TACHE COMPANY LIMITED	RUSSIA
HOPE OF AFRICA BVBA	BELGIUM	SOENEN CONTROLS NV	BELGIUM
HVK INTERNATIONAL PVT. LTD. (H. VINOD KUMAR & CO.)	INDIA	STEINMETZ DIAMONDS (BOTSWANA) (PTY) LTD.	BOTSWANA
IDEAL CUT LTD. (GROUP OF SANGHAVI EXPORTS INTERNATIONAL PVT. LTD.)	RUSSIA	SUASHISH DIAMOND BOTSWANA PTY. LTD.	BOTSWANA
INDIAN DIAMOND INSTITUTE	INDIA	SUPERGEMS (INDIA) PVT. LTD.	INDIA
J.B. & BROTHERS PVT. LTD.	INDIA	TEEMANE MANUFACTURING COMPANY (PTY) LTD.	BOTSWANA
JAGDISH C MODY EXPORTS (CHIRAG GEMS)	INDIA	THE UNITED SELLING ORGANIZATION (USO) OF ALROSA	RUSSIA
JAIMINI ENTERPRISE	INDIA	TWINKLE DIAMONDS	INDIA
JAINAM DIAM	INDIA	VALLABHBHAI DHANJIBHAI & CO.	INDIA
JEELY	INDIA	VAN DER STEEN DIAMOND TECHNOLOGY	BELGIUM
JOGANI EXPORTS	INDIA	VENUS JEWEL	INDIA
JOGI DIAMONDS	INDIA	VIMAL EXPORT	INDIA
JYOT DIAMOND	INDIA	VIREN GEMS	INDIA
K. P. SANGHVI & SONS	INDIA	VISHINDA DIAMOND (DILIPKUMAR V. LAKHI)	INDIA
K.B. SHAH & CO.	INDIA	XENOPZ BVBA	BELGIUM
K.GIRDHARLAL INTERNATIONAL LTD.	INDIA	ZLOTOWSKI’S DIAMOND CUTTING WORKS ( PTY ) LTD. (CHOW TAI FOOK)	SOUTH AFRICA
KALSARIA DIAMONDS PVT. LTD.	INDIA
KAPU GEMS	INDIA
KARP IMPEX LTD.	INDIA
