M-Box

Home Allocation & Planning M-Box

Salient Features

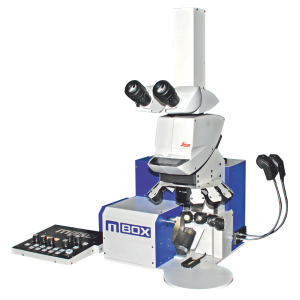

M-Box 1.0

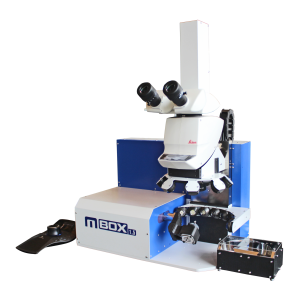

M-Box 1.5

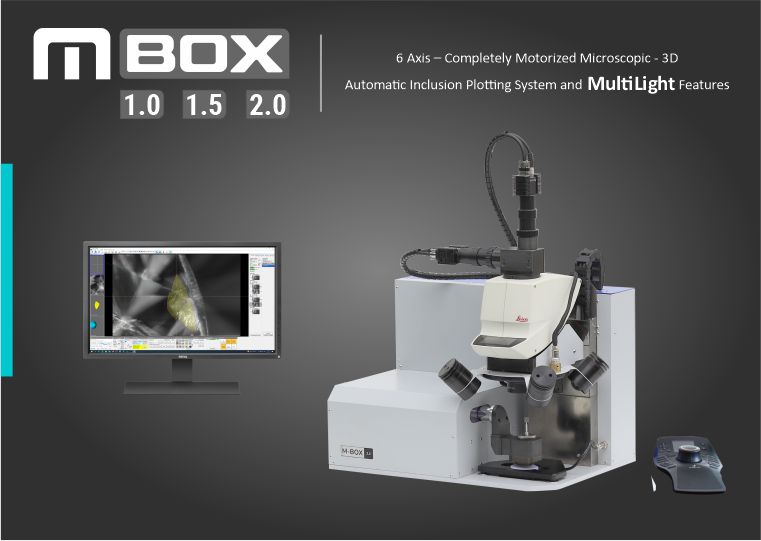

M-Box 2.0

Features Comparison
SR.NO Features MBOX1.0 MBOX1.5 MBOX2.0
1 Easy view available in 3D through Microscope oculars ✔ ✔ ✖
2 Easy view available in 3D directly on Screen ✖ ✖ ✔
3 Stereo with ON-Screen Display using 3D TV ✖ ✖ ✔
4 6 Axes Fully Motorized Movements with 3D Gaming Mouse ✖ ✔ ✔
5 Can make 3D movie for Excellent presentation or Quality check and confirmation ✖ ✖ ✔
6 Two synchronized high resolution Digital camera makes the on-screen 3D viewing possible. ✖ ✖ ✔
7 Optical zoom (up to) 160x 160x 101x
8 On Screen Zoom (up to) 1180x 1180x 745x
9 No maximum size limit (suitable 0.10ct to 1000ct rough Diamond). ✔ ✔ ✔
10 Resolution in mm/pixel 0.0006 0.0006 0.001
11 Inclusion from IF to I3 can be easily manually mapped. Magnification up to 160x optical. ✔ ✔ ✔
12 On screen Image enhancing (Especially “TM” – Tone Mapping – Software Image Processing) ✔ ✔ ✔
13 Low luminescence Camera to improve Visibility of very Fine Inclusion. ✔ ✔ ✔
14 Different Lighting options to easily view Transparent and Opaque Inclusions in the stone. ✔ ✔ ✔
15 Dark Field Light to see much better Visibility for Transparent Inclusions. ✔(Optional) ✔ ✔
16 Automatic Brightness and Contrast control gives the user very crispy on screen display. ✔ ✔ ✔
17 Automatic focusing on surface by just a single click. ✔ ✔ ✔
18 Automatic focusing on any Inclusion by just a single click. ✖ ✔ ✔
19 Automatic any type of Inclusion Searching. ✖ ✔ ✔
20 Auto Suggestion & Auto Location + zoom for second position of any Inclusion on a single click. ✖ ✔ ✔
21 Automatic Focus and Auto plotting of fine Inclusions (Clouds). ✔ ✔ ✔
22 Automatic Scan of stone’s specific area. ✔ ✔ ✔
23 Very easy Auto Focus on any said Inclusion. ✖ ✔ ✔
24 Auto suggestion for second position of any Inclusion. ✔ ✔ ✔
25 Special Algorithms for Auto cloud, Auto surface cavities, Blind spot, Pin Point inclusion, 3D inclusion, Flat cracks and Curved cracks. ✔ ✔ ✔
26 Very Quick Inclusion placement and very quick payback time. ✔ ✔ ✔
27 Only machine to Auto plot Up to IF (Internally flawless – less than 5 microns) under iG ✖ ✔ ✔
28 Manual Mode of plotting With / Without iG Molding (optional) ✔ ✔ ✔
29 Even Pin-holes type Cavities can be precisely Scanned and Automatically Mapped. ✔ ✔ ✔
30 Edges of any Watery Cracks can be easily seen and plotted. ✔ ✔ ✔
31 Manual Plotting of very minute Pin Points to Large amount of Graining, all with very precise location. ✔ ✔ ✔
32 Inclusions can be picked and placed from any window located at any place (except the place where the stone is glued). ✔ ✔ ✔
33 Fine user friendly GUI and ergonomically designed on screen control board. ✖ ✔ ✔
34 Very much User Friendly GUI and ergonomically designed with latest windows compatibility ✔ ✔ ✔
35 Manually designed fine Control Board. ✔ ✖ ✖
36 Easy LAN configurable, can be networked with many Helium Rough scanners, M-Box scanners, and other Oxygen / Pacor terminals. ✔ ✔ ✔
M-Box Operating Video (English)
M-Box Operating Video (Gujarati)

Specification
M-Box Scanner
Camera Model: MC023MG-SY CMOS 1/1.2" Resolution: 1936 x 1216 (ratio 1.6:1)
2.3 Megapixels Monochrome CMOS camera with  Sony IMX174
Models M-Box+1.5 CL M-Box+1.5 BW M-Box+2.0 CL M-Box+2.0 BW M-Box+1.0 M205 M-Box+1.0 Z16
Magnification : 4.9x to 101x 7.8x to 160x 14.2x to 184x
Rough Size : 0.10 Ct to 500 Ct
Resolution : 0.9 µm 0.6 µm
Diamond Type : Inclusion viewing through flat faces or through iG cube
Diamond Holding : Glue assisted for rough and between pins for Polish diamonds
3D Inclusion Mapping : Very advanced - through different direction windows on the stone or thru iG cube
Inclusion type : All - VVS1 to I3 - Cloud to graining to 3D solid to surface feathers
Cavity Mapping : Automatic - inclusion deep pin hole cavity
Stress Plotting : Yes No Yes No No No
Automatic Inclusion Plotting : No Yes - thru iG cube No Yes - thru iG cube No No
Zoom and Focus : Motorized and Auto assisted
X, Y, Rx and Ry : Motorized Manual
Inclusion plotting from 2nd window : Auto Search and Location Auto Advise and assistance
Print Reports : Available (very detailed + user definable)
Electronic Reports : Free reader software (any numbers). Important for Manufacuturing support
Warranty : 24 Months Part warranty - 12 months free service warranty
Camera : CMOS 1/1.2" - 1936 x 1216 pixel
Computer requirements : View Specification here
Operating Systems : Windows 10 Professional - 64bit
Weight : 38 Kgs 38 Kgs 38 Kgs 38 Kgs 30 Kgs 28 Kgs
Dimensions L x W x H : 550x80x710
+/- 50 mm		 550x80x710
+/- 50 mm		 550x380x730
+/- 50 mm		 550x380x730
+/- 50 mm		 400x405700
+/- 20 mm		 400x385x505
+/- 20 mm
Power consumption : 220V 50Hz 500W

Price (Ex-works)
Models M-Box+1.5 CL M-Box+1.5 BW M-Box+2.0 CL M-Box+2.0 BW M-Box+1.0 M205 M-Box+1.0 Z16
Price (w/o computer) - Euro € 72,050.00 € 72,050.00 € 73,200.00 € 73,200.00 € 52,000.00 € 49,800.00
All The Prices Are Ex-Works, Surat, Excluding Freight, Insurance, Packing & Forwarding and Taxes
Delivery Antwerp Brussels Johannesburg Melbourne New York Tokyo
Additional CIF Rates € € 1,400.00 € 1,190.00 € 1,190.00 € 1,190.00 € 1,550.00 € 1,190.00
Add Freight, Insurance & Cartage for following destination to arrive at CIF Delivery Rates.
×
