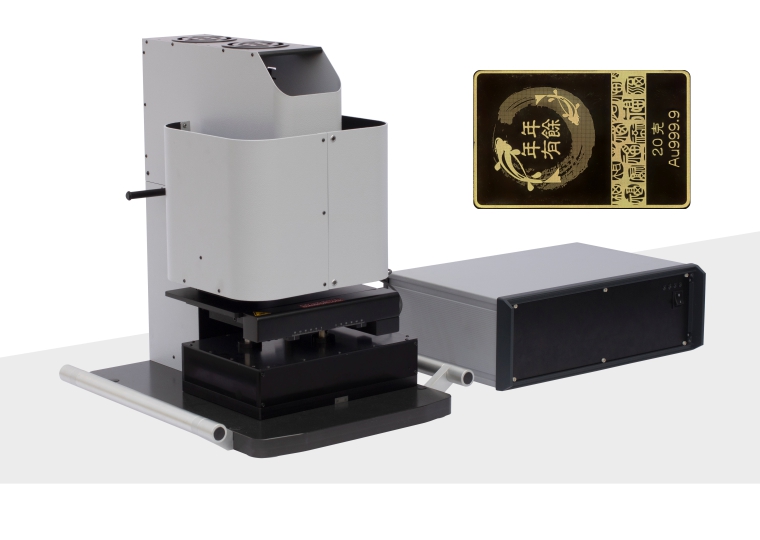

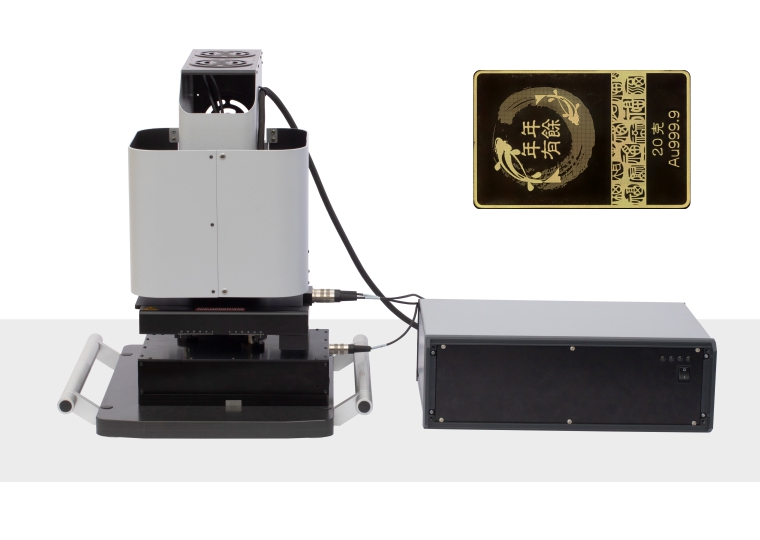

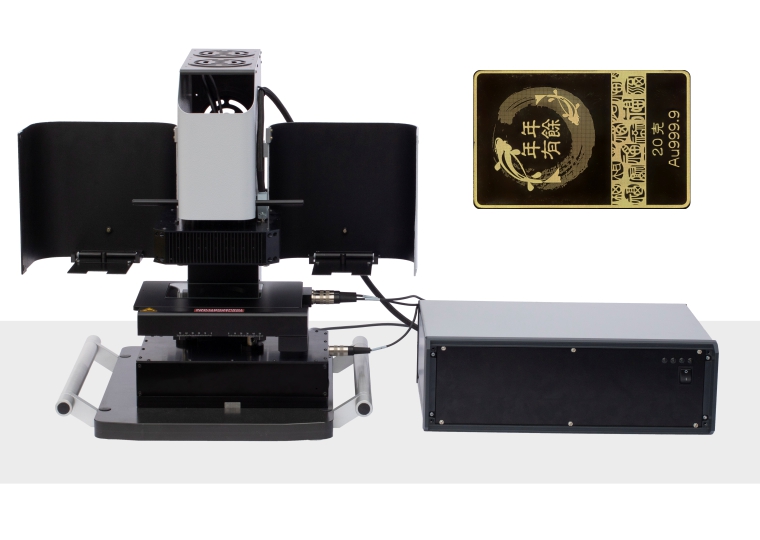

GOLD | DM GOLD

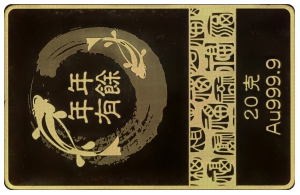

Time for scanning and stitching: 1m 23 sec
Resolution: 9764 x 6263
Size of the object: 67 mm x 43 mm

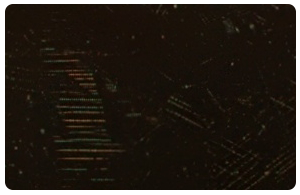

Time for scanning and stitching: 1m 23 sec
Resolution: 9764 x 6263
Size of the object: 67 mm x 43 mm

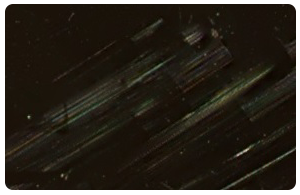

Time for scanning and stitching: 1m 38 sec
Resolution: 9764 x 6263
Size of the object: 67 mm x 43 mm

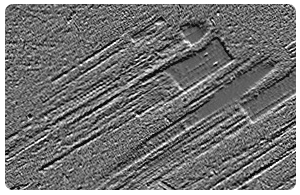

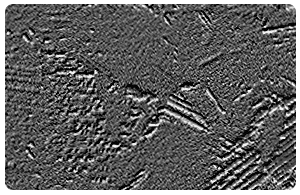

Time for scanning and stitching: 1m 40 sec
Resolution: 9764 x 6263
Size of the object: 67 mm x 43 mm


Camera and video processing	5 Megapixels resolution Color camera Realtime (at least 30 FPS) high-quality processing of camera RAW streaming on GPU 5 FPS in multilight mode (for 6 lighting sections)

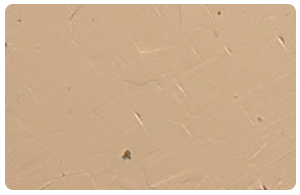

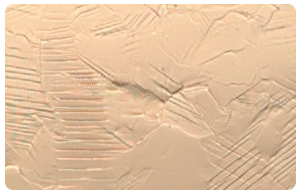

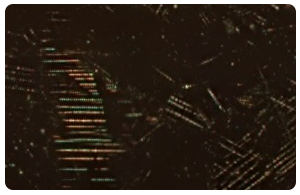

Lighting	Top light working in continuous and multilight modes Coaxial light (for coaxial system)
Optics	Optical size of pixel - 10 microns (7 microns for coaxial system) Field of view: 25 x 20 mm (17,5 x 14 mm)
Motorization	Full motorization for X and Y axis, and Z (focus) XY Stage - Marzhauser scanning stage 100x100 Precision: 1 micron Travel range: X (100 mm), Y (100 mm), Z (12 mm)
Software	Microscope manual controls (focus, stage controls, exposure, lighting controls) Autoexposure Autofocus Calibration (white balance, camera angle and pixel size, 2d transform, flat field correction, black level) Multilight controls: mode (Multilight, photometric stereo etc.), LED tuning, presets Batch stitching tool: scanning area selector, batch programs, scanning in top/coaxial/multilight/photometric stereo modes Remote controlling (using Octonus Support Agent)


Module	Price in €
DM GOLD	Starting from € 37,500.00
