Allocation & Planning| Helium iG Scanner

Captures Immersion Glass images for Auto-Plotting of inclusions.
Can be Auto-plot offline on an Auto-Plot terminal (3 Terminals Software and 1 Machines gives highest output).
Outright Sales – No Contracts – No Per Carat charges- Life time – You are the owner of the equipment and software.
User Friendly – Windows 8 Based - Single Click - Completely Automatic - Plotting on HIG images.
Auto-Plotting - up to VS (15 Microns).
Very high depth of sharpness for better viewing of inclusions.
Nominal after checks (QAC) and correction needed. Can be done on a separate QC Terminal.
Quick - fast and reliable (One Stone gets auto-plotted within 15 to 20 Minutes)- With 3 Software terminals, one can reduce this time to as low as 5 minutes per stone.
4 Types of Method / Algorithms for Auto – Plot – Dynamic (Default) – Tolerant - Sensitive & Moderate – Milky and other stones can be very well auto-plotted.
For Higher Automatic Quality checks (to confirm VVS and IF) transferable to M-Box 2.0.
Fast productions and suitable for Medium to Low quality goods (SI to I) without need of vigorous QAC.
Single Click Auto Plan - available through Pacor-All-In-One Method for Optimization.
3D Stereo Visualization using 3D Glass on 3D Monitor for in-depth observations.
3D gives great assistance in quality confirmation.
Highly cost effective & Very short payback time.
Immersion Glass can be used more than 10 time if proper care taken.
Highly intuitive operating software requiring almost no training.

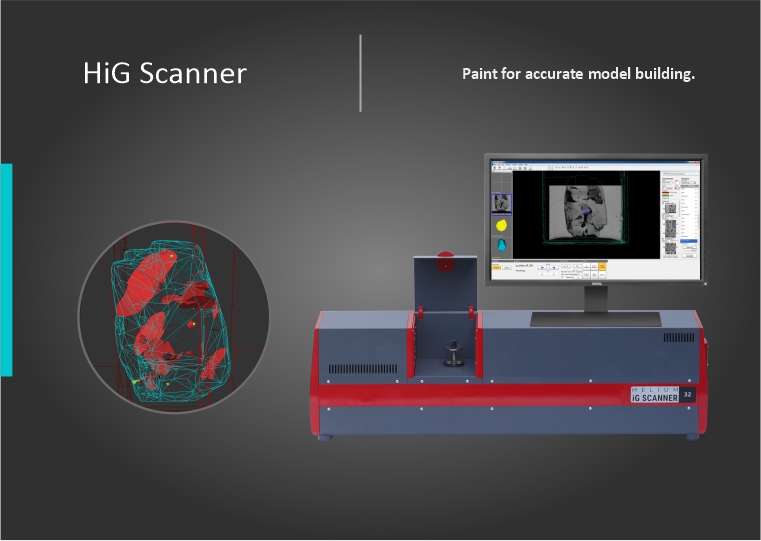

Helium iG Scanner
Camera Model: MC023MG-SY CMOS 1/1.2" Resolution: 1936 x 1216 (ratio 1.6:1)
2.3 Megapixels Monochrome CMOS camera with Sony IMX174
MODELS	HiG⁺11	HiG⁺21	HiG⁺32
Field of view :	7.1 x 11.3 mm	13.4 x 21.3 mm	20.2 x 32.3 mm
Rough Size :	0.10 Ct to 4.5 Ct	0.70 Ct to 30 Ct	2.5 Ct to 100 Ct
3D-model accuracy :	5.9 µm	11 µm	16.7 µm
Diamond Type	Non Coated skin
Diamond Holding	Glue assisted - encompassed in immersion Glass Cube
3D Inclusion Mapping	Automatic under Immersion Glass (up to VS and down)
Warranty	24 Months Part warranty - 12 months free service warranty
Lens	1x	0.53x	0.35x
Camera	CMOS 1/1.2" - 1936 x 1216 pixel
Computer requirements	View Specification here
Operating Systems	Windows 10 Professional - 64bit
Weight	18 Kgs	30 Kgs	30 Kgs
Dimensions	70 x 23 x 23 cm	92 x 23 x 23 cm	92 x 23 x 23 cm
Power consumption	220V 50Hz 500W

MODELS	HiG⁺11	HiG⁺21	HiG⁺32	HiG⁺45
Price in € (W/O Computer)	€ 16,500.00	€ 32,000.00	€ 46,000.00	€ 55,000.00
All The Prices Are Ex-Works, Surat, Excluding Freight, Insurance, Packing & Forwarding and Taxes


Delivery	Antwerp	Brussels	Johannesburg	Melbourne	New York	Tokyo
Additional CIF Rates €	€ 1,400.00	€ 1,190.00	€ 1,190.00	€ 1,190.00	€ 1,550.00	€ 1,190.00
Add Freight, Insurance & Cartage for following destination to arrive at CIF Delivery Rates.
