INTRODUCTION

Executing the bruting as per the plan has been always challenging and a lengthy iterative process. Now you have a low-cost very quick solution to achieve final bruting as per your SMARTplan

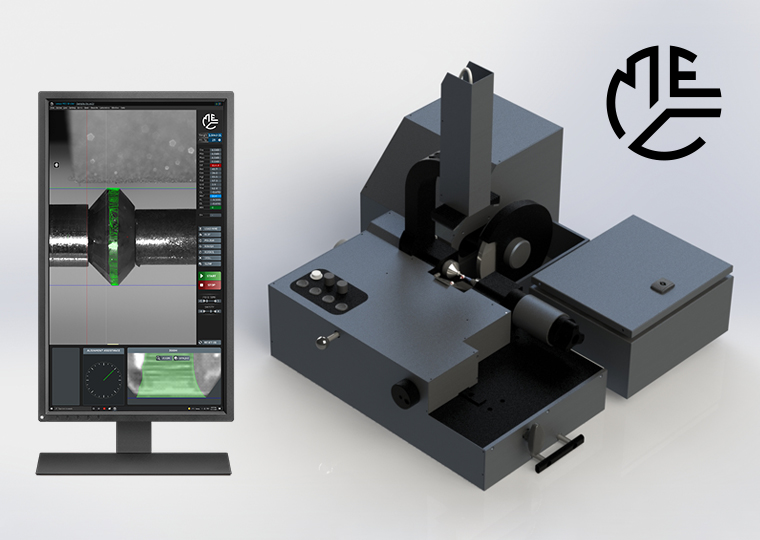

Here comes MEC Bruter to precisely follow your plan. In recent years, the round cut allocation is stretched to achieve extra mass while maintaining beautiful symmetry, the look, and the GIA cut grade. The operator must get an opportunity to follow the plan with utmost precision. MEC Bruter helps him in the process.

Salient Features

Specification
Field of view 16 mm x 10 mm.
Size Range 0.2 Ct to 12 Ct (3.75 mm to 14.7 mm)
Diamond shape Round Brilliant Cut
Camera pixel size 0.009 mm
CMOS Camera 1/1.2” (1920 x 1200)
Direct measurement 0.001 mm least count (radius)
Input from SMART Recut software – Carbon Platform
Warranty 12 months
Top light With intensity control
Back light Yes
Diamond holding Glued as well as “between pins”
Machine dimension 750L x 750W x 625H mm
Weight 110kg
Power supply 230V 50Hz Single Phase – 400watts

Price (Ex-works)
Module Price in €
MEC Bruter € 8960 (without Computer and Compressor)
ALL THE PRICES ARE EX-WORKS, SURAT, EXCLUDING FREIGHT, INSURANCE, PACKING & FORWARDING AND TAXES.
